CAP ALUM 680UF 20% 160V SNAP

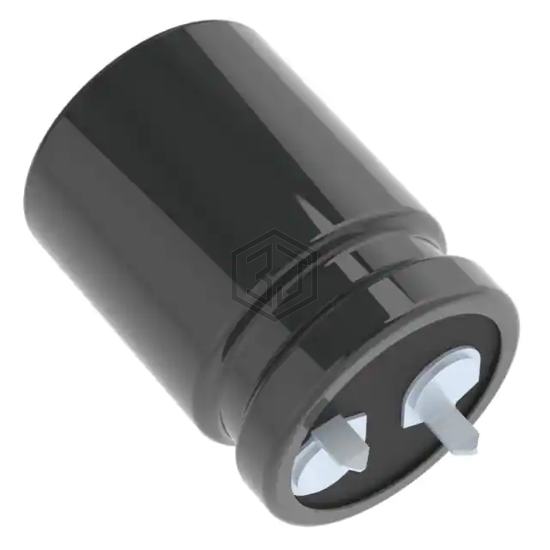

SMQ160VS681M22X30T2 is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 680UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 9,740
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 366mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.75 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
SMQ160VS681M22X30T2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43540C2687M80 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 200V SNAP | 90% | View |
| B43501F2687M | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 200V SNAP | 89% | View |
| MAL215922681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 200V SNAP | 80% | View |
| B43509C2687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 200V SNAP | 77% | View |
| B41793A9687Q001 | EPCOS - TDK Electronics | CAP ALUM 680UF 100V SNAP | 74% | View |
| 380LQ681M350A032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 350V SNAP | 73% | View |
Submit your RFQ for SMQ160VS681M22X30T2 and get a quote within 24 hours.
