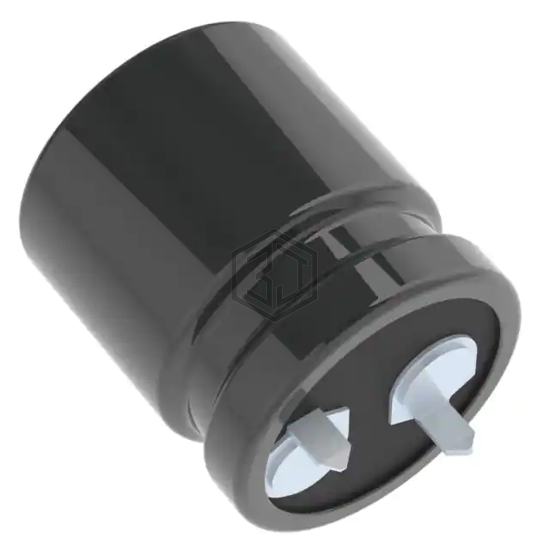

CAP ALUM 560UF 20% 160V SNAP
SMQ160VS561M22X25T2 is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 5,926
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 444mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.25 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.375 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
SMQ160VS561M22X25T2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LX561M200K012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 200V SNAP | 89% | View |
| B43540B2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 89% | View |
| B43231E2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 85% | View |
| B43504A2567M82 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 74% | View |
| LAK2D561MELC25 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 70% | View |
| B43501A3567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 385V SNAP | 64% | View |
Submit your RFQ for SMQ160VS561M22X25T2 and get a quote within 24 hours.
