CAP ALUM 6800UF 20% 25V SNAP

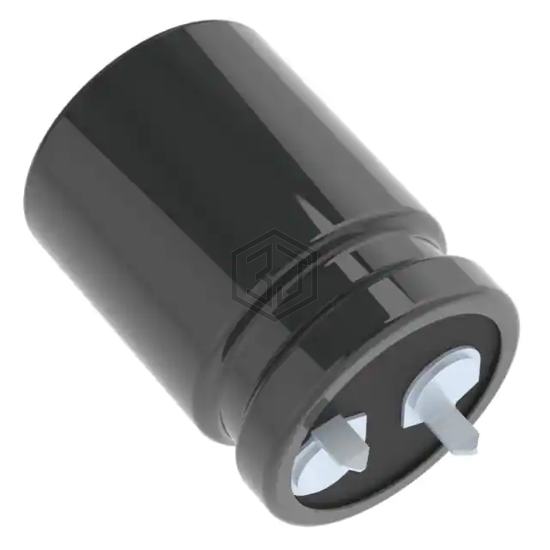

SMH25VN682M22X30T2 is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 6800UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 6,966
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 73mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.592 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
SMH25VN682M22X30T2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LP682M025C5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 25V SNAP | 90% | View |
| MAL225056682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 25V RADIAL | 90% | View |
| B41505A7688M000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 35V SNAP | 85% | View |
| B41252B7688M | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 35V SNAP | 82% | View |
| LGY1C682MELZ25 | Nichicon | CAP ALUM 6800UF 20% 16V SNAP | 74% | View |
| ELXZ160ELL682ML40S | United Chemi-Con | CAP ALUM 6800UF 20% 16V RADIAL | 71% | View |
Submit your RFQ for SMH25VN682M22X30T2 and get a quote within 24 hours.
