CAP ALUM 2200UF 20% 100V SNAP

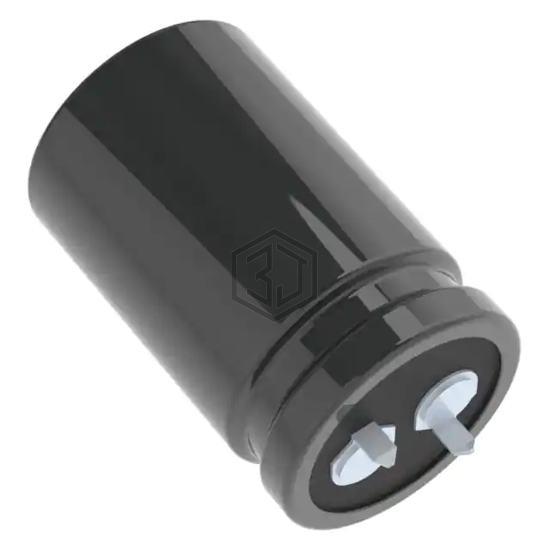

SMH100VS222M25X40T2 is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 1,860
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 113mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.13 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.756 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.000" Dia (25.40mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
SMH100VS222M25X40T2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100USC2200MEFC25X35 | Rubycon | CAP ALUM 2200UF 20% 100V SNAP | 99% | View |
| LKG1K222MESCBK | Nichicon | CAP ALUM 2200UF 20% 80V SNAP | 90% | View |
| B43508A2228M67 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 200V SNAP | 69% | View |
| 50YK2200M16X35.5 | Rubycon | CAP ALUM 2200UF 20% 50V RADIAL | 59% | View |
| UPA1A222MHD6TO | Nichicon | CAP ALUM 2200UF 20% 10V RADIAL | 56% | View |
| 10ZLG2200MEFC12.5X20 | Rubycon | CAP ALUM 2200UF 20% 10V RADIAL | 55% | View |
Submit your RFQ for SMH100VS222M25X40T2 and get a quote within 24 hours.
