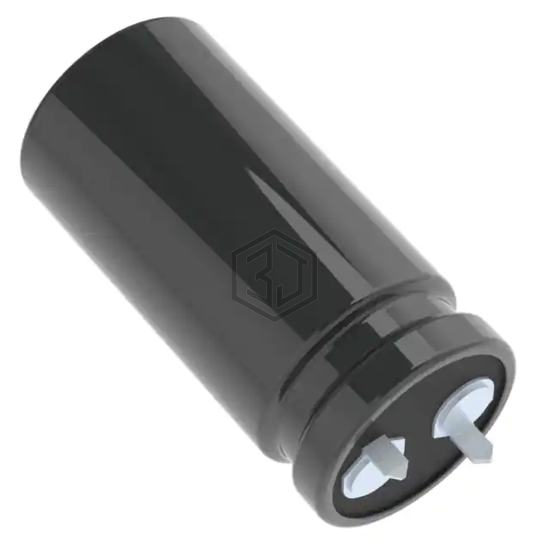

CAP ALUM 2200UF 20% 100V SNAP
SMH100VS222M22X45T2 is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 1,998
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 113mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.08 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.696 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
SMH100VS222M22X45T2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL205629222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 100V SNAP | 91% | View |
| EKZH350ELL222ML25S | United Chemi-Con | CAP ALUM 2200UF 20% 35V RADIAL | 76% | View |
| MAL215668222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 63V SNAP | 73% | View |
| B43508E2228M80 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 250V SNAP | 71% | View |
| B41890A7228M | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 35V RADIAL | 70% | View |
| 16ZL2200MEFC12.5X25 | Rubycon | CAP ALUM 2200UF 20% 16V RADIAL | 61% | View |
