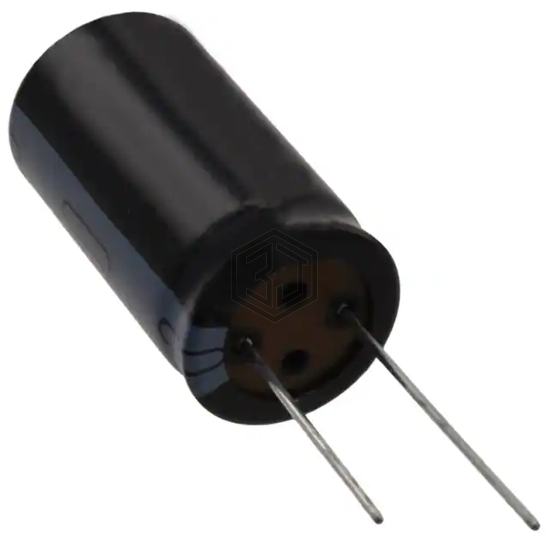

CAP ALUM 3300UF 20% 63V RADIAL
SMG63VB332M22DLL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3300UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 2,717
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 65mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.81 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.372 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG63VB332M22DLL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGY1J332MELZ45 | Nichicon | CAP ALUM 3300UF 20% 63V SNAP | 87% | View |
| 338TTA050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3300UF 20% 50V AXIAL | 86% | View |
| NEV3300M50HA | NTE Electronics, Inc | CAP ALUM 3300UF 20% 50V RADIAL | 85% | View |
| ESMH101VSN332MR40S | United Chemi-Con | CAP ALUM 3300UF 20% 100V SNAP | 68% | View |
| 10ZLH3300MEFCT810X25 | Rubycon | CAP ALUM 3300UF 20% 10V RADIAL | 56% | View |
| 10YXG3300MEFCG412.5X30 | Rubycon | CAP ALUM 3300UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for SMG63VB332M22DLL and get a quote within 24 hours.
