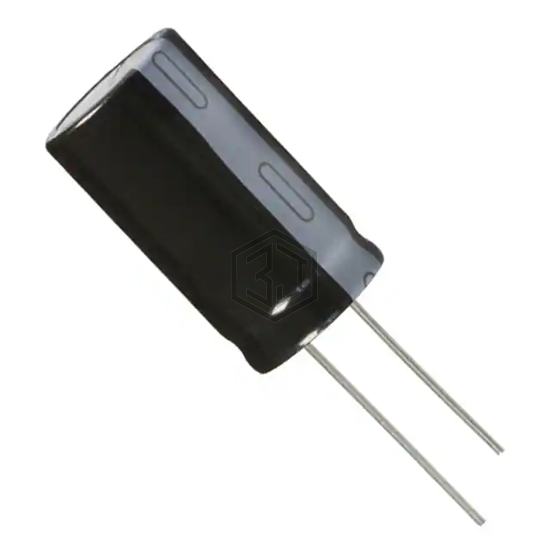

CAP ALUM 2200UF 20% 63V RADIAL
SMG63VB222M20CLL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 1,560
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 83mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.33 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.796 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG63VB222M20CLL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 228TMA063M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2200UF 20% 63V AXIAL | 85% | View |
| MAL214831222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 50V RADIAL | 77% | View |
| RXW222M1VBK-1632S | SURGE | CAP ALUM 2200UF 20% 35V RADIAL | 73% | View |
| RZW222M1EBK-1820S | SURGE | CAP ALUM 2200UF 20% 25V RADIAL | 71% | View |
| 228LBB100M2DD | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2200UF 20% 100V SNAP | 71% | View |
| EEU-FR0J222B | Panasonic Electronic Components | CAP ALUM 2200UF 20% 6.3V RADIAL | 66% | View |
