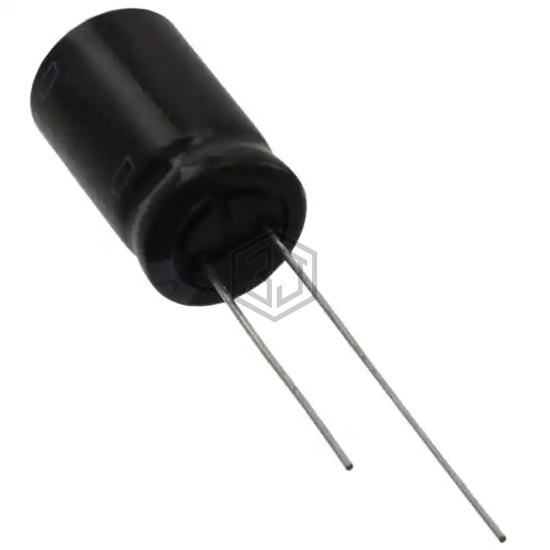

CAP ALUM 6800UF 20% 6.3V RADIAL
SMG6.3VB682M12X25LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 6800UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 6,847
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 107mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.915 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.0682 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG6.3VB682M12X25LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FS0J682L | Panasonic Electronic Components | CAP ALUM 6800UF 20% 6.3V RADIAL | 77% | View |
| MAL214265682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 16V RADIAL | 71% | View |
| LKS1E682MESA | Nichicon | CAP ALUM 6800UF 20% 25V SNAP | 71% | View |
| EKYB100ELL682ML25S | United Chemi-Con | CAP ALUM 6800UF 20% 10V RADIAL | 68% | View |
| MAL224665682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 16V RADIAL | 66% | View |
| 688CKE035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 6800UF 20% 35V RADIAL | 62% | View |
