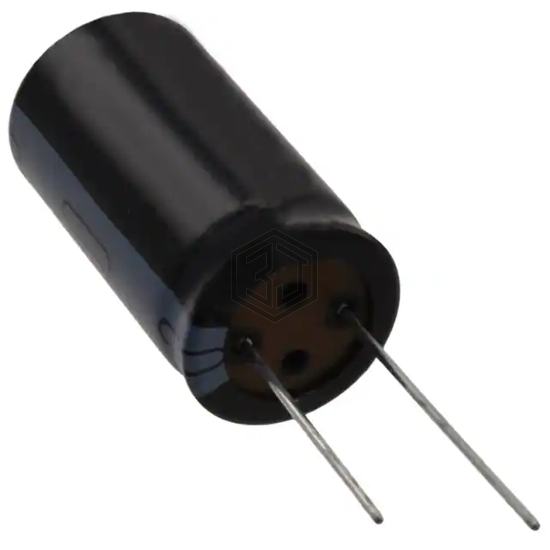

CAP ALUM 27000UF 20% 6.3V RADIAL
SMG6.3VB273M22DLL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 27000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 4,564
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 27000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 49mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.28 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.5424 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG6.3VB273M22DLL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH6R3VSN273MQ35U | United Chemi-Con | CAP ALUM 27000UF 20% 6.3V SNAP | 88% | View |
| 10MXC27000MEFC25X40 | Rubycon | CAP ALUM 27000UF 20% 10V SNAP | 84% | View |
| SLPX273M010E3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 27000UF 20% 10V SNAP | 73% | View |
| LKG1C273MESCBK | Nichicon | CAP ALUM 27000UF 20% 16V SNAP | 63% | View |
| MAL215885273E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 27000UF 20% 16V SNAP | 61% | View |
| LKS1V273MESC | Nichicon | CAP ALUM 27000UF 20% 35V SNAP | 59% | View |
