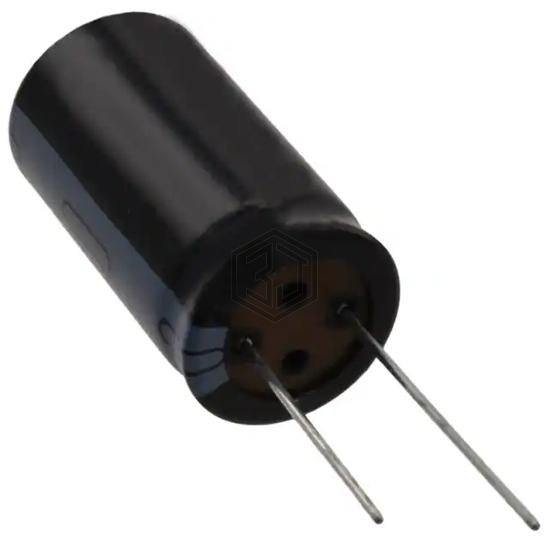

CAP ALUM 4700UF 20% 50V RADIAL
SMG50VB472M22DLL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 4700UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,151
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 149mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.96 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.1968 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG50VB472M22DLL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LX472M050K012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 20% 50V SNAP | 98% | View |
| 380LX472M050J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 20% 50V SNAP | 89% | View |
| LKSA2472MESZ | Nichicon | CAP ALUM 4700UF 20% 42V SNAP | 87% | View |
| EEU-FR1A472L | Panasonic Electronic Components | CAP ALUM 4700UF 20% 10V RADIAL | 75% | View |
| 860020581026 | Würth Elektronik | CAP ALUM 4700UF 20% 35V RADIAL | 72% | View |
| LKG1E472MESBCK | Nichicon | CAP ALUM 4700UF 20% 25V SNAP | 68% | View |
Submit your RFQ for SMG50VB472M22DLL and get a quote within 24 hours.
