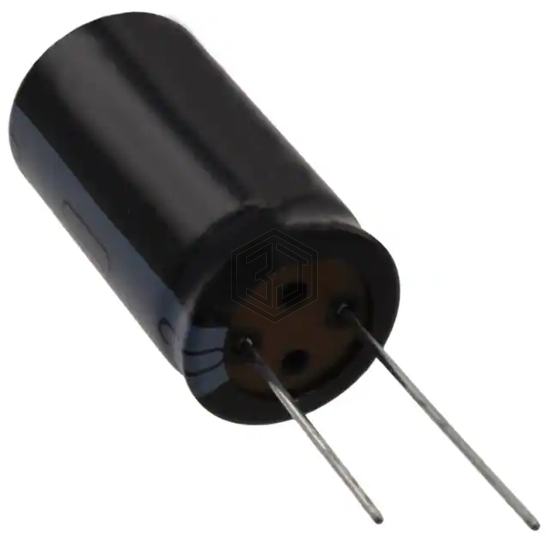

CAP ALUM 100UF 20% 450V RADIAL
SMG450VB101M22DLL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 100UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 5,055
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 86mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 470 mA @ 120 Hz |
| Ripple Current @ High Frequency | 672.1 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG450VB101M22DLL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PW2W101MNN1635A4 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 94% | View |
| MAL205948101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 385V SNAP | 80% | View |
| EKMH401VNN101MQ25U | United Chemi-Con | CAP ALUM 100UF 20% 400V SNAP | 79% | View |
| 450QXW100MEFR16X35 | Rubycon | CAP ALUM 100UF 20% 450V RADIAL | 78% | View |
| ESMM401VSN101MP25S | United Chemi-Con | CAP ALUM 100UF 20% 400V SNAP | 61% | View |
| EKXJ251ELL101ML20S | United Chemi-Con | CAP ALUM 100UF 20% 250V RADIAL | 57% | View |
