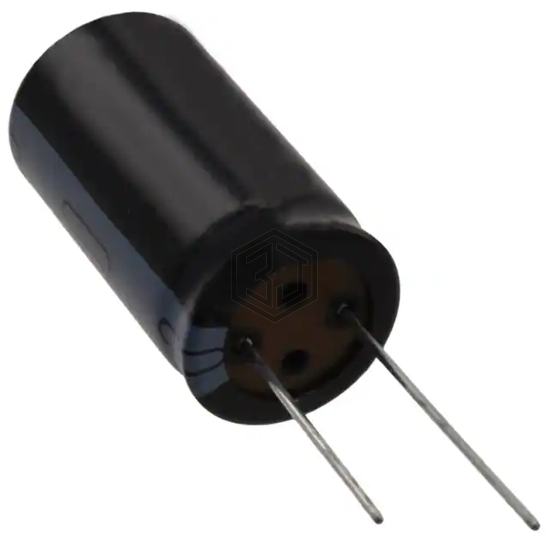

CAP ALUM 6800UF 20% 35V RADIAL
SMG35VB682M22DLL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 6800UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 7,403
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 7.053Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.09 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.3372 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG35VB682M22DLL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL205846682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 25V SNAP | 82% | View |
| MAL215831682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 50V SNAP | 76% | View |
| MAL205821682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 50V SNAP | 71% | View |
| LGY1K682MELC45 | Nichicon | CAP ALUM 6800UF 20% 80V SNAP | 71% | View |
| 6.3ZLJ6800M12.5X35 | Rubycon | CAP ALUM 6800UF 20% 6.3V RADIAL | 65% | View |
| MAL214835682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 16V RADIAL | 54% | View |
Submit your RFQ for SMG35VB682M22DLL and get a quote within 24 hours.
