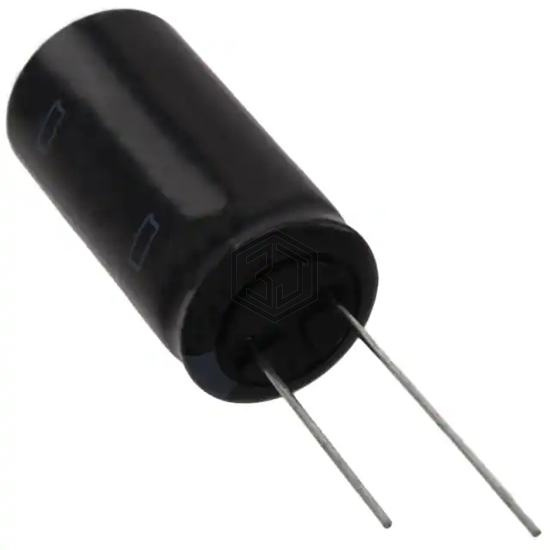

CAP ALUM 4700UF 20% 35V RADIAL
SMG35VB472M18X35LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 4700UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 5,420
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 18.082Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.16 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG35VB472M18X35LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVK1V472MHD1CV | Nichicon | CAP ALUM 35V POLAR | 91% | View |
| 478LBB035M2CC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 35V SNAP | 89% | View |
| LGY1J472MELA50 | Nichicon | CAP ALUM 4700UF 20% 63V SNAP | 73% | View |
| 500D478M016GK2A | Vishay Sprague | CAP ALUM 4700UF 20% 16V AXIAL | 56% | View |
| 380LQ472M063K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 20% 63V SNAP | 56% | View |
| 16WXA4700MEFCGC18X20 | Rubycon | CAP ALUM 4700UF 20% 16V RADIAL | 54% | View |
