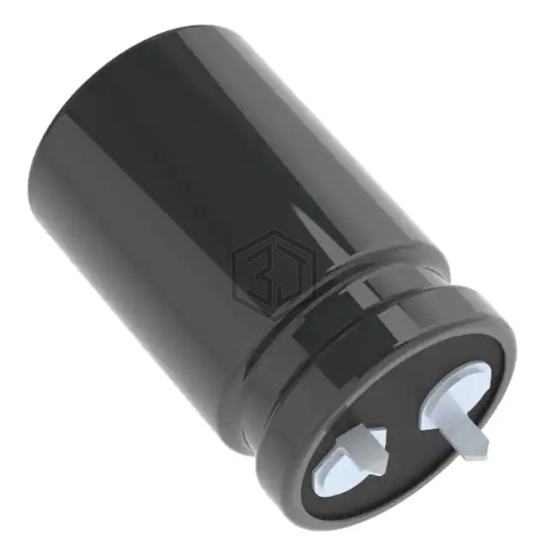

CAP ALUM 8200UF 20% 25V RADIAL
SMG25VB822M22CLL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 8200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,858
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 71mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.81 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.0348 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG25VB822M22CLL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKS1V822MESB | Nichicon | CAP ALUM 8200UF 20% 35V SNAP | 85% | View |
| ELXG350VSN822MA30S | United Chemi-Con | CAP ALUM 8200UF 20% 35V SNAP | 85% | View |
| EKY-160ELL822MMP1S | United Chemi-Con | CAP ALUM 8200UF 20% 16V RADIAL | 73% | View |
| EEU-FR0J822 | Panasonic Electronic Components | CAP ALUM 8200UF 20% 6.3V RADIAL | 71% | View |
| 80MXG8200MEFCSN35X45 | Rubycon | CAP ALUM 8200UF 20% 80V SNAP | 57% | View |
| 80MXC8200MEFC35X50 | Rubycon | CAP ALUM 8200UF 20% 80V SNAP | 57% | View |
Submit your RFQ for SMG25VB822M22CLL and get a quote within 24 hours.
