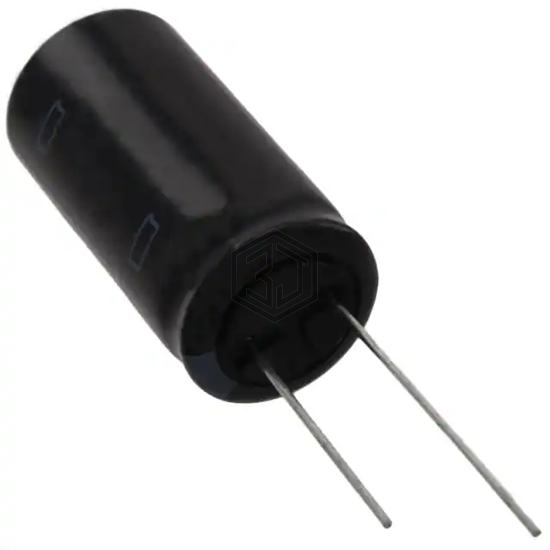

CAP ALUM 6800UF 20% 25V RADIAL
SMG25VB682M18X35LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 6800UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,850
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.88 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.1104 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG25VB682M18X35LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 688LBB025M2CC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 6800UF 20% 25V SNAP | 97% | View |
| EKZN160ELL682MM25S | United Chemi-Con | CAP ALUM 6800UF 20% 16V RADIAL | 78% | View |
| EKMH350VSN682MQ35S | United Chemi-Con | CAP ALUM 6800UF 20% 35V SNAP | 78% | View |
| 381LX682M063A042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 63V SNAP | 67% | View |
| ESMH630VNN682MR40U | United Chemi-Con | CAP ALUM 6800UF 20% 63V SNAP | 58% | View |
| SEK682M010ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 10V RADIAL | 54% | View |
Submit your RFQ for SMG25VB682M18X35LL and get a quote within 24 hours.
