CAP ALUM 22UF 20% 25V RADIAL

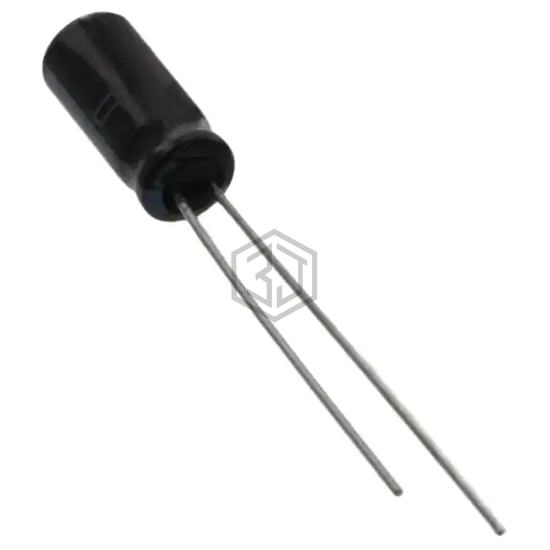

SMG25VB22RM5X11LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 5,086
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 2.321Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 78 mA @ 120 Hz |
| Ripple Current @ High Frequency | 140.4 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG25VB22RM5X11LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL212326229 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 25V AXIAL | 96% | View |
| URZ1E220MDD1TD | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 86% | View |
| UEP1E220MED | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 86% | View |
| 226BPA050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 50V AXIAL | 62% | View |
| ESS226M016AC2AA | KEMET | CAP ALUM 22UF 20% 16V RADIAL | 55% | View |
| 226TTA350M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 350V AXIAL | 52% | View |
Submit your RFQ for SMG25VB22RM5X11LL and get a quote within 24 hours.
