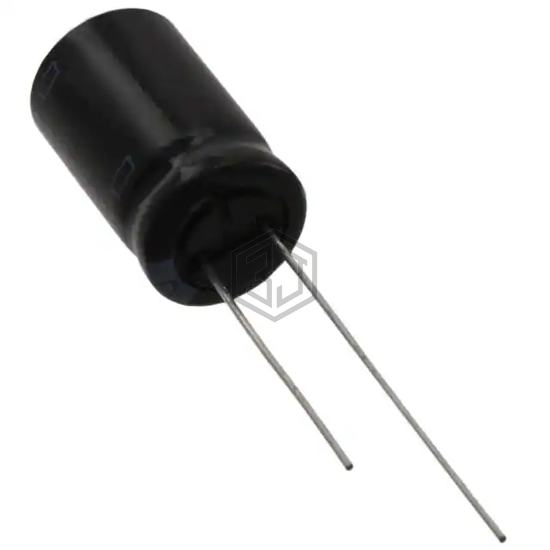

CAP ALUM 2200UF 20% 25V RADIAL
SMG25VB222M12X25LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,796
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 846.383Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.54 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.6632 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG25VB222M12X25LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBT1C222MHD | Nichicon | CAP ALUM 2200UF 20% 16V RADIAL | 79% | View |
| 16ZLH2200MEFCG412.5X20 | Rubycon | CAP ALUM 2200UF 20% 16V RADIAL | 74% | View |
| MAL205659222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 100V SNAP | 59% | View |
| 53D222G063HL6E3 | Vishay Sprague | CAP ALUM 2200UF 63V AXIAL | 59% | View |
| 35ZLQ2200MEFC12.5X35 | Rubycon | CAP ALUM 2200UF 20% 35V RADIAL | 57% | View |
| 10YXF2200MEFCGC16X16 | Rubycon | CAP ALUM 2200UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for SMG25VB222M12X25LL and get a quote within 24 hours.
