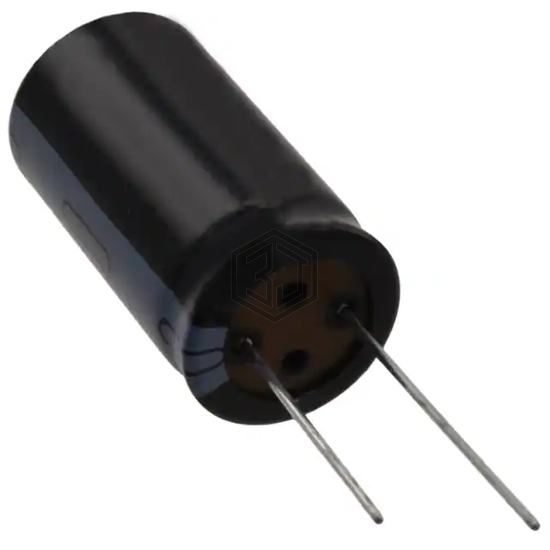

CAP ALUM 330UF 20% 250V RADIAL
SMG250VB331M22DLL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 6,058
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 63mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.06 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.59 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG250VB331M22DLL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43501D2337M67 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 87% | View |
| B43540E2337M82 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 84% | View |
| B43504E337M60 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 420V SNAP | 67% | View |
| 100YXG330MEFCGC18X20 | Rubycon | CAP ALUM 330UF 20% 100V RADIAL | 62% | View |
| MAL214839331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 100V RADIAL | 55% | View |
| B43540C9337M80 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 400V SNAP | 55% | View |
Submit your RFQ for SMG250VB331M22DLL and get a quote within 24 hours.
