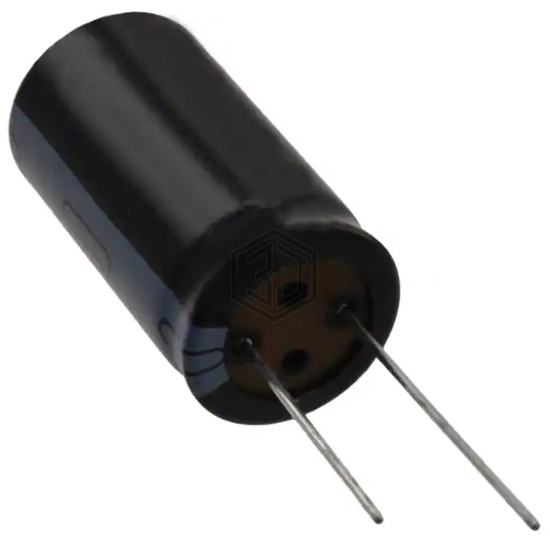

CAP ALUM 560UF 20% 200V RADIAL
SMG200VB561M22DLL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 4,314
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 136mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.43 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.145 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG200VB561M22DLL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 180MXC560MEFCSN25X30 | Rubycon | CAP ALUM 560UF 20% 180V SNAP | 93% | View |
| LPX561M200E1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 200V SNAP | 93% | View |
| 381LX561M160J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 160V SNAP | 92% | View |
| B43508F2567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 87% | View |
| B43643E2567M057 | EPCOS - TDK Electronics | SNAP-IN 560UF 250V | 83% | View |
| 250MXC560MEFCSN25X40 | Rubycon | CAP ALUM 560UF 20% 250V SNAP | 82% | View |
Submit your RFQ for SMG200VB561M22DLL and get a quote within 24 hours.
