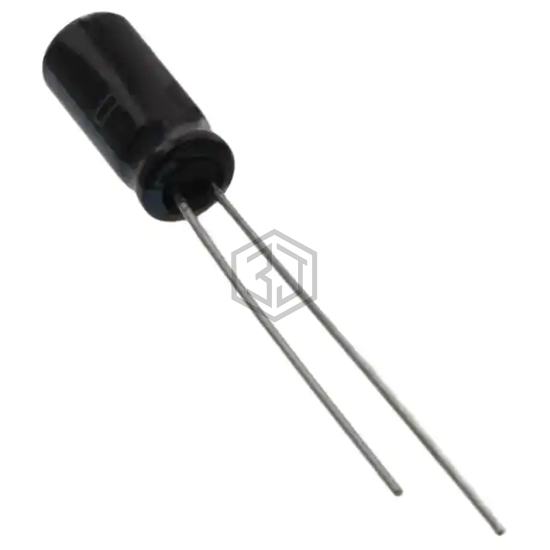

CAP ALUM 22UF 20% 16V RADIAL
SMG16VB22RM5X11LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 4,307
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 70.532Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 135 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG16VB22RM5X11LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| USV1C220MFD1TE | Nichicon | CAP ALUM 22UF 20% 16V RADIAL | 83% | View |
| UEP1H220MPD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 73% | View |
| 50YXH22MEFCTA5X11 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 72% | View |
| UST1H220MDD1TA | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 68% | View |
| 50MH722MEFCTZ6.3X7 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 64% | View |
| MAL202137229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 40V AXIAL | 54% | View |
