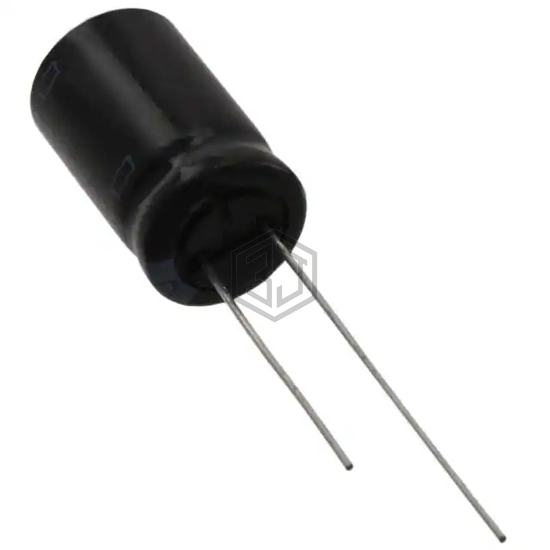

CAP ALUM 2200UF 20% 16V RADIAL
SMG16VB222M12X20LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 2,953
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 529mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.295 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.3986 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG16VB222M12X20LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1C222MESYCK | Nichicon | CAP ALUM 2200UF 20% 16V SNAP | 99% | View |
| UPJ1C222MHD6CA | Nichicon | CAP ALUM 16V POLAR | 83% | View |
| MAL211914222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 10V AXIAL | 78% | View |
| EEU-FS1A222 | Panasonic Electronic Components | CAP ALUM 2200UF 20% 10V RADIAL | 68% | View |
| 383LX222M200A052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 200V SNAP | 56% | View |
| B41505A228M2 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 80V SNAP | 56% | View |
Submit your RFQ for SMG16VB222M12X20LL and get a quote within 24 hours.
