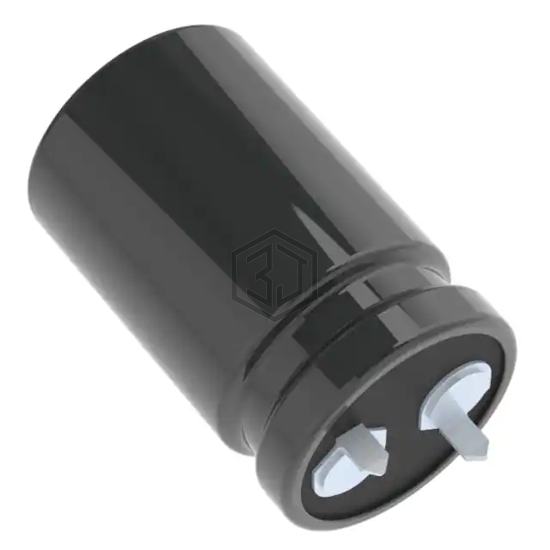

CAP ALUM 12000UF 20% 16V RADIAL
SMG16VB123M22CLL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 12000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,673
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 638mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.132 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG16VB123M22CLL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLP123M016A5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 20% 16V SNAP | 96% | View |
| 16YXS12000MEFC18X40 | Rubycon | CAP ALUM 12000UF 20% 16V RADIAL | 89% | View |
| EKMH160VSN123MQ30S | United Chemi-Con | CAP ALUM 12000UF 20% 16V SNAP | 88% | View |
| 6.3YXS12000MEFC18X25 | Rubycon | CAP ALUM 12000UF 20% 6.3V RADIAL | 72% | View |
| EEU-FK0J123S | Panasonic Electronic Components | CAP ALUM 12000UF 20% 6.3V RAD TH | 71% | View |
| ESMH350VNN123MQ45U | United Chemi-Con | CAP ALUM 12000UF 20% 35V SNAP | 64% | View |
Submit your RFQ for SMG16VB123M22CLL and get a quote within 24 hours.
