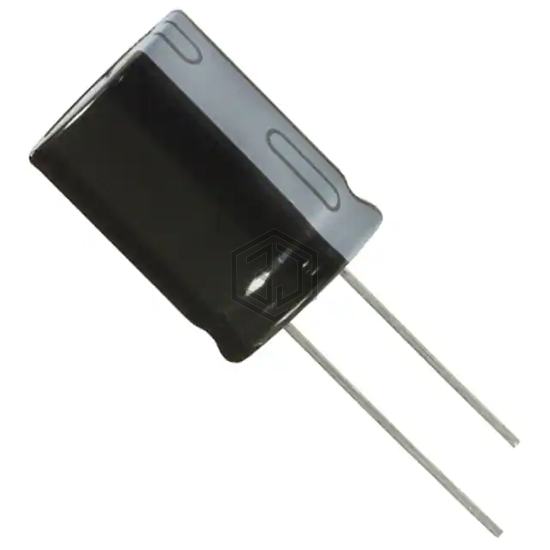

CAP ALUM 390UF 20% 160V RADIAL
SMG160VB391M22BLL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 390UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 5,720
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 73mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.16 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.74 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG160VB391M22BLL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGJ2D391MELC | Nichicon | CAP ALUM 390UF 20% 200V SNAP | 88% | View |
| 380LX391M200J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 390UF 20% 200V SNAP | 76% | View |
| 50TXW390MEFC8X40 | Rubycon | CAP ALUM 390UF 20% 50V RADIAL | 72% | View |
| B43305F2397M87 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 250V SNAP | 70% | View |
| B43601E2397M82 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 250V SNAP | 68% | View |
| 35ZLH390MEFC8X20 | Rubycon | CAP ALUM 390UF 20% 35V RADIAL | 67% | View |
Submit your RFQ for SMG160VB391M22BLL and get a quote within 24 hours.
