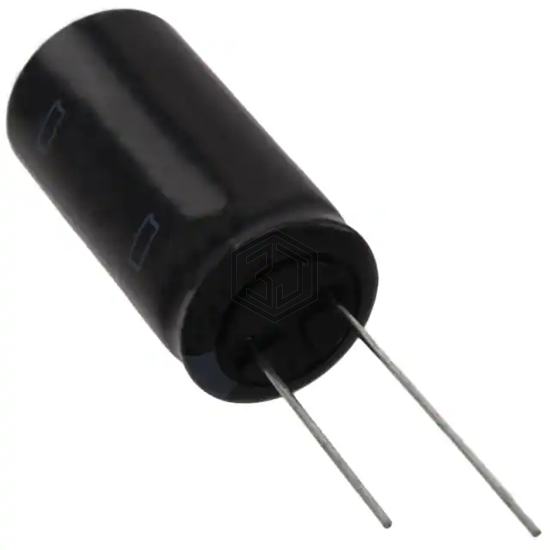

CAP ALUM 330UF 20% 160V RADIAL
SMG160VB331M18X35LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 6,887
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 92mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 995 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.4925 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG160VB331M18X35LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43252B1337M | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 160V SNAP | 94% | View |
| B43508F2337M80 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 77% | View |
| B43252G2337M | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 76% | View |
| EGXE630ELL331MK25S | United Chemi-Con | CAP ALUM 330UF 20% 63V RADIAL | 65% | View |
| B43508B9337M67 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 400V SNAP | 63% | View |
| EEU-FM1H331LB | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V RADIAL | 60% | View |
Submit your RFQ for SMG160VB331M18X35LL and get a quote within 24 hours.
