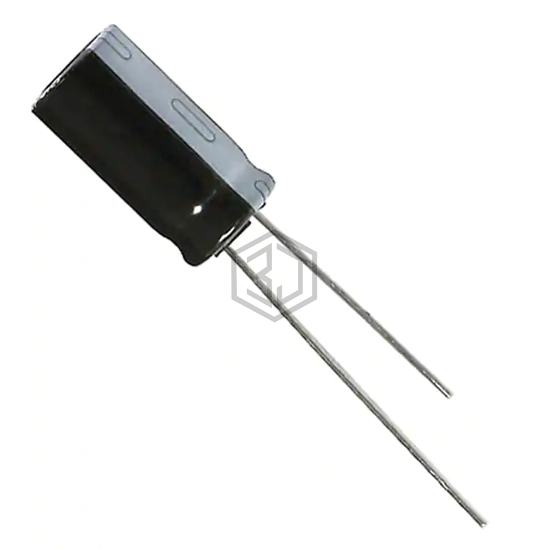

CAP ALUM 2200UF 20% 10V RADIAL
SMG10VB222M10X20LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 4,438
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 3.315Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.07 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.1556 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG10VB222M10X20LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 228KBM010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2200UF 20% 10V RADIAL | 81% | View |
| ESMG160ELL222MK20S | United Chemi-Con | CAP ALUM 2200UF 20% 16V RADIAL | 77% | View |
| 25WXA2200MEFC16X20 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 76% | View |
| EKY-6R3ELL222MJ25S | United Chemi-Con | CAP ALUM 2200UF 20% 6.3V RADIAL | 74% | View |
| MAL204856222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V RADIAL | 70% | View |
| LKSA2222MESY | Nichicon | CAP ALUM 2200UF 20% 42V SNAP | 59% | View |
Submit your RFQ for SMG10VB222M10X20LL and get a quote within 24 hours.
