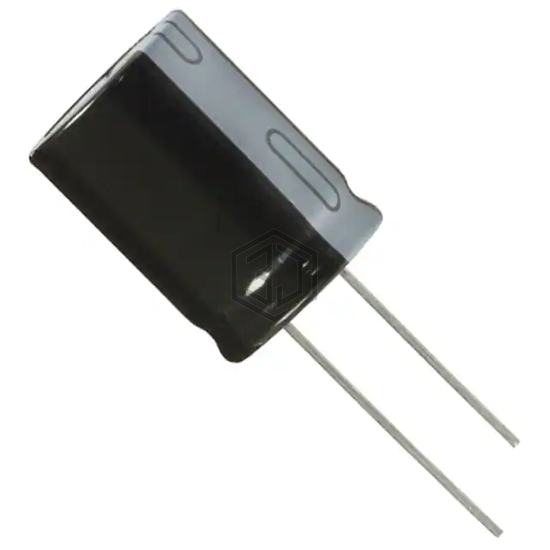

CAP ALUM 820UF 20% 100V RADIAL
SMG100VB821M22BLL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 820UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5,487
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 753mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.54 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.848 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG100VB821M22BLL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41888C7827M | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 35V RADIAL | 69% | View |
| EKZN100ELL821MH15D | United Chemi-Con | CAP ALUM 820UF 20% 10V RADIAL | 64% | View |
| 381LX821M200J042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 200V SNAP | 62% | View |
| EEU-FS1C821B | Panasonic Electronic Components | CAP ALUM 820UF 20% 16V RADIAL | 59% | View |
| 16YXG820MEFCG412.5X16 | Rubycon | CAP ALUM 820UF 20% 16V RADIAL | 56% | View |
| 25ZLK820MT810X20 | Rubycon | CAP ALUM 820UF 20% 25V RADIAL | 54% | View |
Submit your RFQ for SMG100VB821M22BLL and get a quote within 24 hours.
