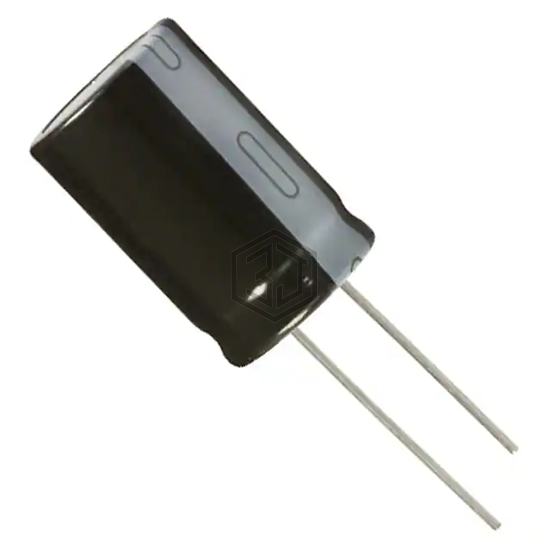

CAP ALUM 680UF 20% 100V RADIAL
SMG100VB681M20BLL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 680UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 8,075
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 1.005Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.36 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.632 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG100VB681M20BLL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 687KXM100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 680UF 20% 100V RADIAL | 91% | View |
| LGN2C681MELZ35 | Nichicon | CAP ALUM 680UF 20% 160V SNAP | 70% | View |
| ELXV350EC3681MK25S | United Chemi-Con | CAP ALUM 680UF 20% 35V RADIAL | 67% | View |
| MAL213638681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 66% | View |
| B43508G2687M62 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 66% | View |
| MAL214838681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 62% | View |
Submit your RFQ for SMG100VB681M20BLL and get a quote within 24 hours.
