CAP ALUM 22UF 20% 100V RADIAL

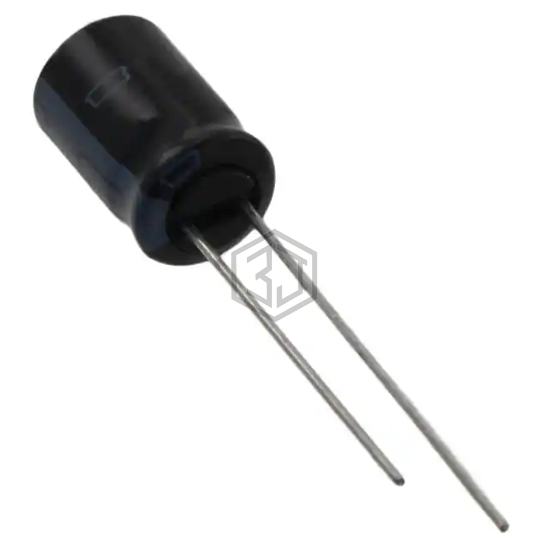

SMG100VB22RM8X11LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5,315
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 846mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 234 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG100VB22RM8X11LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC2A220B | Panasonic Electronic Components | CAP ALUM 22UF 20% 100V RADIAL | 91% | View |
| EKMQ161ELL220MJC5S | United Chemi-Con | CAP ALUM 22UF 20% 160V RADIAL | 69% | View |
| 50YXS22MEFC5X11 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 67% | View |
| URZ2E220MHD | Nichicon | CAP ALUM 22UF 20% 250V RADIAL | 61% | View |
| ULM22M50 | NTE Electronics, Inc | CAP ALUM 22UF 20% 50V RADIAL | 56% | View |
| SEK220M200ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 200V RADIAL | 56% | View |
