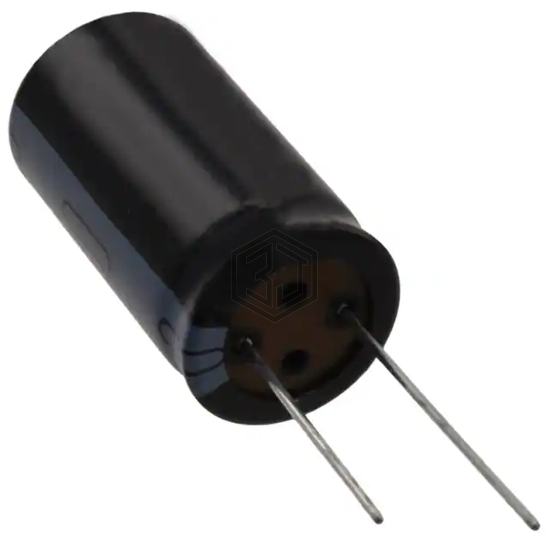

CAP ALUM 1200UF 20% 100V RADIAL
SMG100VB122M22DLL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1200UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 4,606
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 1.205Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.98 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.376 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG100VB122M22DLL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FR1E122L | Panasonic Electronic Components | CAP ALUM 1200UF 20% 25V RADIAL | 78% | View |
| EKYC500ELL122ML20S | United Chemi-Con | CAP ALUM 1200UF 20% 50V RADIAL | 71% | View |
| B43508E2128M62 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 250V SNAP | 64% | View |
| LGN2P122MELC35 | Nichicon | CAP ALUM 1200UF 20% 220V SNAP | 62% | View |
| 381LR122M200J052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 20% 200V SNAP | 62% | View |
| B43601F2128M62 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 250V SNAP | 58% | View |
