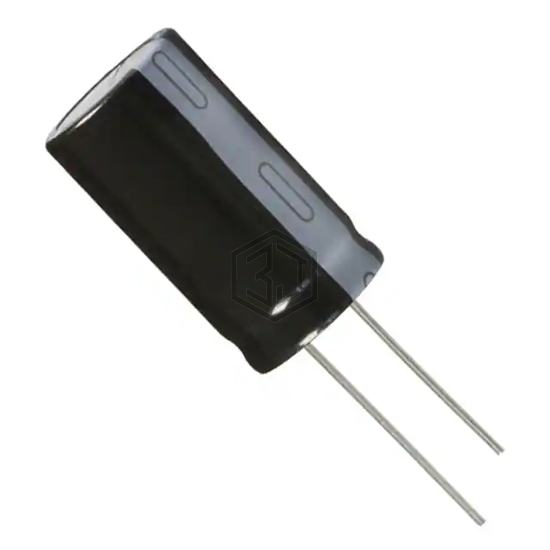

CAP ALUM 1000UF 20% 100V RADIAL
SMG100VB102M20CLL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 2,037
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 50mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.72 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.064 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG100VB102M20CLL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35YXS1000MEFC12.5X20 | Rubycon | CAP ALUM 1000UF 20% 35V RADIAL | 71% | View |
| EKZE250ETE102MK20S | United Chemi-Con | CAP ALUM 1000UF 20% 25V RADIAL | 71% | View |
| B41858D6108M9 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 50V RADIAL | 70% | View |
| B43504H2108M67 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 200V SNAP | 61% | View |
| B43508E2108M67 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 250V SNAP | 61% | View |
| EEU-FR1H102B | Panasonic Electronic Components | CAP ALUM 1000UF 20% 50V RADIAL | 59% | View |
