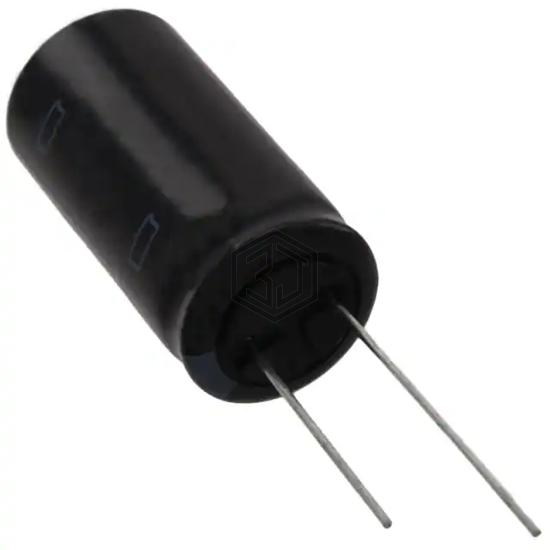

CAP ALUM 1000UF 20% 100V RADIAL
SMG100VB102M18X40LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 7,141
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 196mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.38 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.07 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG100VB102M18X40LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH101VSN102MQ30U | United Chemi-Con | CAP ALUM 1000UF 20% 100V SNAP | 95% | View |
| B43508G2108M62 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 250V SNAP | 62% | View |
| LP102M200H5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 200V SNAP | 60% | View |
| B43252A1108M | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 160V SNAP | 59% | View |
| 16YXG1000MEFC10X20 | Rubycon | CAP ALUM 1000UF 20% 16V RADIAL | 58% | View |
| LP102M200H7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 200V SNAP | 58% | View |
Submit your RFQ for SMG100VB102M18X40LL and get a quote within 24 hours.
