CAP ALUM 2200UF 20% 16V SMD

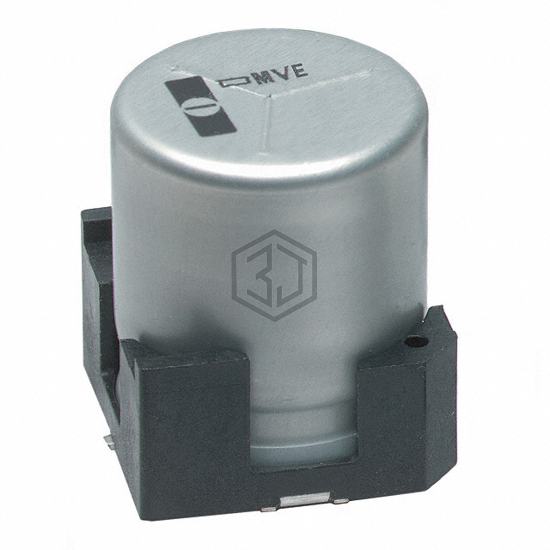

MVE16VE222ML17TR is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 4,814
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 241mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 950 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
MVE16VE222ML17TR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215099515E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V SMD | 100% | View |
| EMVE160GDA222MMH0S | United Chemi-Con | CAP ALUM 2200UF 20% 16V SMD | 98% | View |
| EEE-TG1C222M | Panasonic Electronic Components | CAP ALUM 2200UF 20% 16V SMD | 96% | View |
| EEV-TG1E222M | Panasonic Electronic Components | CAP ALUM 2200UF 20% 25V SMD | 78% | View |
| EEE-TG1E222M | Panasonic Electronic Components | CAP ALUM 2200UF 20% 25V SMD | 78% | View |
| EEE-FT0J222AP | Panasonic Electronic Components | CAP ALUM 2200UF 20% 6.3V SMD | 67% | View |
Submit your RFQ for MVE16VE222ML17TR and get a quote within 24 hours.
