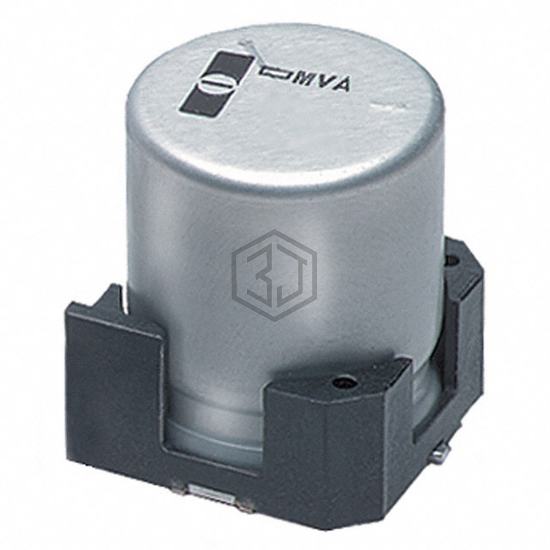

CAP ALUM 100UF 20% 35V SMD
MVA35VC101MF80TP is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 100UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,008
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 2.321Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
MVA35VC101MF80TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MZA35VC101MF80TP | United Chemi-Con | CAP ALUM 100UF 20% 35V SMD | 100% | View |
| AVS107M35X16T-F | Cornell Dubilier Knowles | CAP ALUM 100UF 20% 35V SMD | 97% | View |
| UUD1V101MNR1GS | Nichicon | CAP ALUM 100UF 20% 35V SMD | 80% | View |
| UE107M025HEJTA | Aillen | CAP ALUM 100UF 20% 25V SMD | 78% | View |
| EMVH250ARA101MHA0G | Chemi-Con | CAP ALUM 100UF 20% 25V SMD | 69% | View |
| EMVY101ATR101MKE0S | United Chemi-Con | CAP ALUM 100UF 20% 100V SMD | 56% | View |
Submit your RFQ for MVA35VC101MF80TP and get a quote within 24 hours.
