CAP ALUM 2200UF 20% 10V SMD

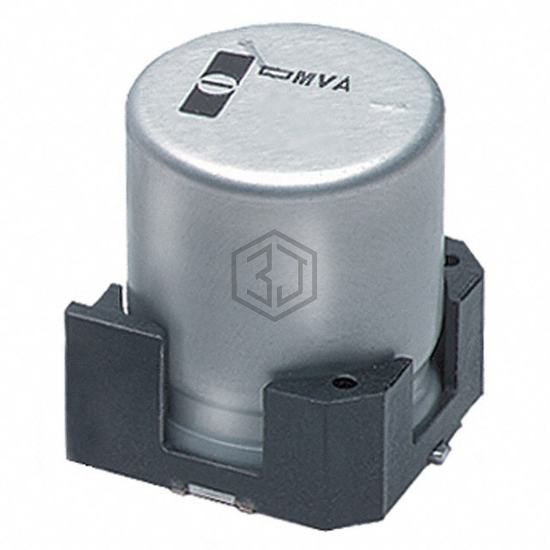

MVA10VC222MK14TP is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 9,186
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 271mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 960 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
MVA10VC222MK14TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215099414E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 10V SMD | 100% | View |
| EEE-FK1A222AQ | Panasonic Electronic Components | CAP ALUM 2200UF 20% 10V SMD | 95% | View |
| 16TGV2200M16X21.5 | Rubycon | CAP ALUM 2200UF 20% 16V SMD | 80% | View |
| EMVY160ARA222MLH0S | Chemi-Con | CAP ALUM 16V POLAR | 80% | View |
| EDH228M6R3A9RAA | KEMET | CAP ALUM 2200UF 20% 6.3V SMD | 70% | View |
| AEA1213222M006R | KYOCERA AVX | ALUMINUM CAP | 69% | View |
Submit your RFQ for MVA10VC222MK14TP and get a quote within 24 hours.
