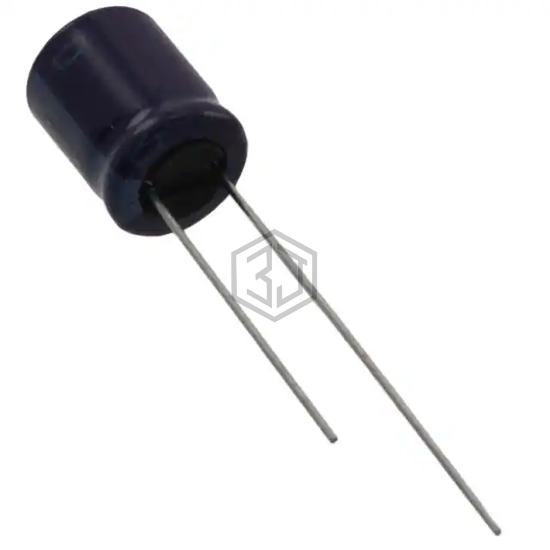

CAP ALUM 180UF 20% 50V RADIAL
LXZ50VB181M10X16LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 180UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,535
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 340 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 130 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
LXZ50VB181M10X16LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKC00DJ318J00F | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 63V RADIAL | 86% | View |
| EEU-FC1J181 | Panasonic Electronic Components | CAP ALUM 180UF 20% 63V RADIAL | 81% | View |
| B41890A7187M | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 35V RADIAL | 81% | View |
| B41888C8187M | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 63V RADIAL | 80% | View |
| 860080775017 | Würth Elektronik | CAP ALUM 180UF 20% 63V RADIAL | 78% | View |
| 601D187F100JJ3 | Vishay Sprague | CAP ALUM 180UF 100V AXIAL | 56% | View |
Submit your RFQ for LXZ50VB181M10X16LL and get a quote within 24 hours.
