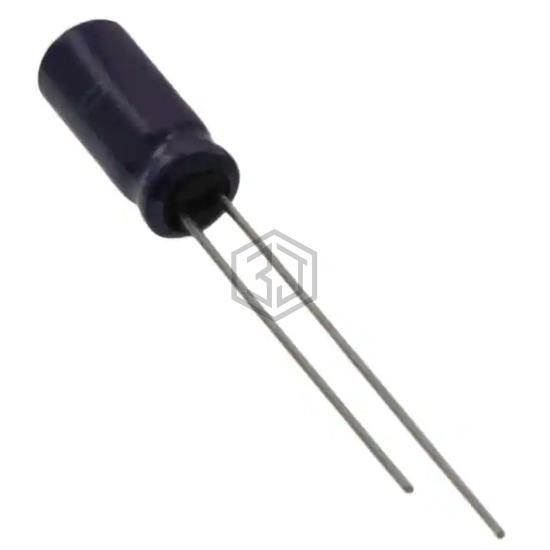

CAP ALUM 33UF 20% 35V RADIAL
LXZ35VB33RM5X11LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 33UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 9,924
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | 175 mA @ 100 kHz |
| Impedance | 500 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
LXZ35VB33RM5X11LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ350ELL330MEB5D | United Chemi-Con | CAP ALUM 33UF 20% 35V RADIAL | 100% | View |
| EKMA350ELL330MF07D | United Chemi-Con | CAP ALUM 33UF 20% 35V RADIAL | 97% | View |
| UKA1H330MDD1TD | Nichicon | CAP ALUM 33UF 20% 50V RADIAL | 82% | View |
| UPW1H330MED1TD | Nichicon | CAP ALUM 33UF 20% 50V RADIAL | 72% | View |
| B41896C6336M006 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 72% | View |
| EEU-FC1J330B | Panasonic Electronic Components | CAP ALUM 33UF 20% 63V RADIAL | 53% | View |
