CAP ALUM 470UF 20% 25V RADIAL

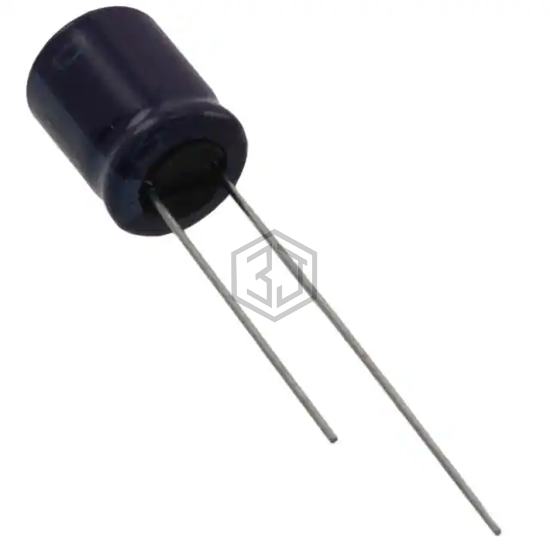

LXZ25VB471M10X16LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,402
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 525 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
| Impedance | 68 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
LXZ25VB471M10X16LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D477H025DS3R | Vishay Sprague | CAP ALUM 470UF 25V RADIAL | 100% | View |
| MAL215056471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V RADIAL | 95% | View |
| ELXV250ERC471MJ20S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 93% | View |
| EEU-HD1E471B | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V RADIAL | 78% | View |
| EEU-HD1H471 | Panasonic Electronic Components | CAP ALUM 470UF 20% 50V RADIAL | 72% | View |
| MAL216035471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 16V RADIAL | 71% | View |
Submit your RFQ for LXZ25VB471M10X16LL and get a quote within 24 hours.
