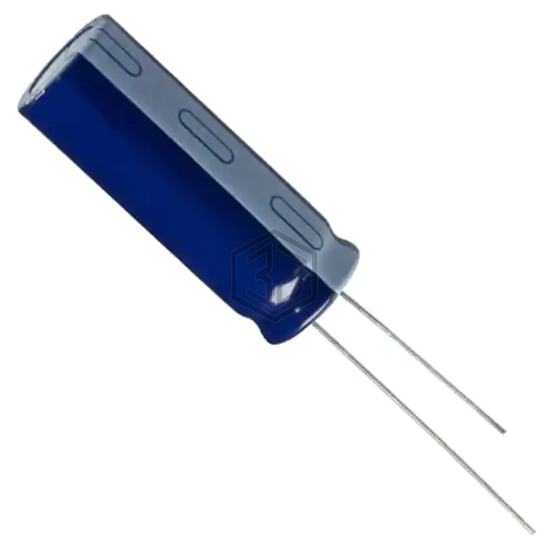

CAP ALUM 2700UF 20% 25V RADIAL
LXZ25VB272M12X40LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2700UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,780
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.1525 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.87 A @ 100 kHz |
| Impedance | 17 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
LXZ25VB272M12X40LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ250ELL272ML25S | United Chemi-Con | CAP ALUM 2700UF 20% 25V RADIAL | 92% | View |
| UPA1V272MHD6TN | Nichicon | CAP ALUM 2700UF 20% 35V RADIAL | 88% | View |
| MAL213656272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 25V RADIAL | 87% | View |
| B41858C7278M000 | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 35V RADIAL | 80% | View |
| MAL214666272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 25V RADIAL | 78% | View |
| B41896C4278M | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 16V RADIAL | 78% | View |
Submit your RFQ for LXZ25VB272M12X40LL and get a quote within 24 hours.
