CAP ALUM 680UF 20% 16V RADIAL

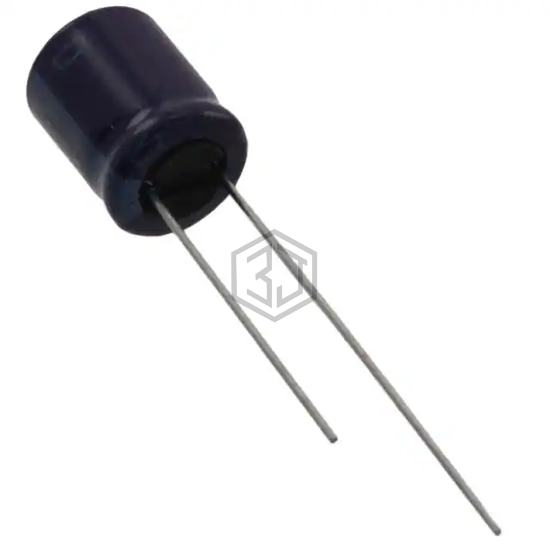

LXZ16VB681M10X16LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 680UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,667
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 630 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
| Impedance | 68 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
LXZ16VB681M10X16LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215035681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V RADIAL | 99% | View |
| 678D687M020DM4J | Vishay Sprague | CAP ALUM 680UF 20% 20V RADIAL | 86% | View |
| MAL215056681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 25V RADIAL | 74% | View |
| URY1E681MHD1TO | Nichicon | CAP ALUM 680UF 20% 25V RADIAL | 73% | View |
| 10WXA680MEFCT810X9 | Rubycon | CAP ALUM 680UF 20% 10V RADIAL | 62% | View |
| MAL225098686E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 59% | View |
Submit your RFQ for LXZ16VB681M10X16LL and get a quote within 24 hours.
