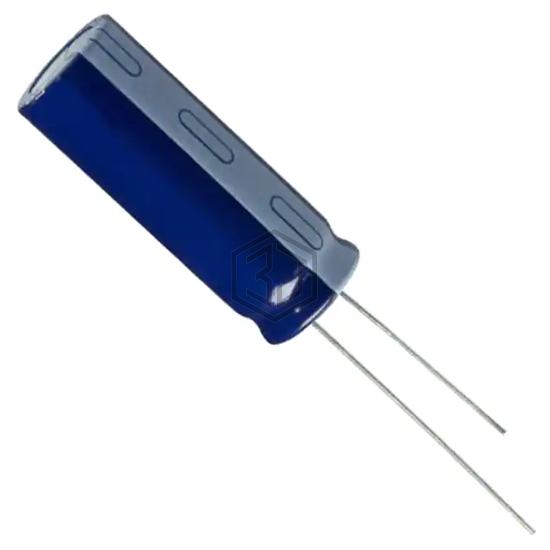

CAP ALUM 3900UF 20% 16V RADIAL
LXZ16VB392M12X40LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3900UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,439
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.1525 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.87 A @ 100 kHz |
| Impedance | 17 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
LXZ16VB392M12X40LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41888D4398M | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 16V RADIAL | 95% | View |
| RZW392M1CBK-1340S | Surge | CAP ALUM 16V POLAR | 95% | View |
| MAL213655392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 16V RADIAL | 87% | View |
| RXW392M1EBK-1636S | Surge | CAP ALUM 25V POLAR | 85% | View |
| UPM1A392MHD1AA | Nichicon | CAP ALUM 10V POLAR | 80% | View |
| MAL213664392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 10V RADIAL | 70% | View |
