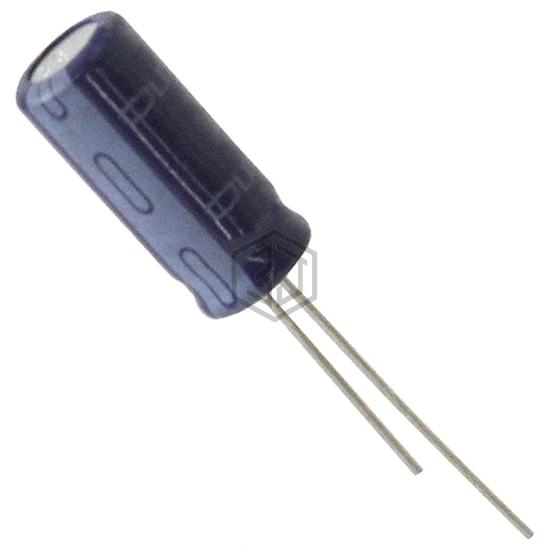

CAP ALUM 3300UF 20% 16V RADIAL
LXZ16VB332M12X35LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3300UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,390
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.8825 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.51 A @ 100 kHz |
| Impedance | 22 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
LXZ16VB332M12X35LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858A4338M | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 16V RADIAL | 96% | View |
| EEU-FC1A332 | Panasonic Electronic Components | CAP ALUM 3300UF 20% 10V RADIAL | 83% | View |
| 338KXM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3300UF 20% 16V RADIAL | 83% | View |
| UPW1A332MHH | Nichicon | CAP ALUM 3300UF 20% 10V RADIAL | 76% | View |
| 50YXA3300MEFCCE18X35.5 | Rubycon | CAP ALUM 3300UF 20% 50V RADIAL | 73% | View |
| MAL215034332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 10V RADIAL | 69% | View |
Submit your RFQ for LXZ16VB332M12X35LL and get a quote within 24 hours.
