CAP ALUM 1000UF 20% 10V RADIAL

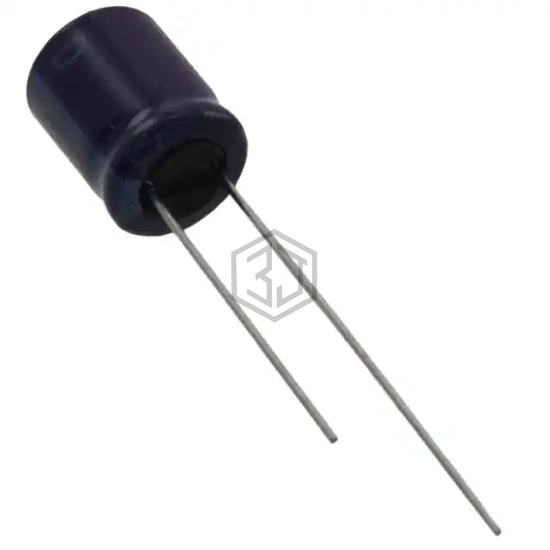

LXZ10VB102M10X16LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 8,073
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 630 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
| Impedance | 68 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
LXZ10VB102M10X16LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RZW102M1ABK-1016S | Surge | CAP ALUM 10V POLAR | 93% | View |
| KMG10VB102M10X12LL | United Chemi-Con | CAP ALUM 1000UF 20% 10V RADIAL | 82% | View |
| UVZ1C102MPD1CA | Nichicon | CAP ALUM 16V POLAR | 71% | View |
| MAL216031102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 65% | View |
| SEK102M6R3ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 6.3V RADIAL | 64% | View |
| MAL213666102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 25V RADIAL | 51% | View |
Submit your RFQ for LXZ10VB102M10X16LL and get a quote within 24 hours.
