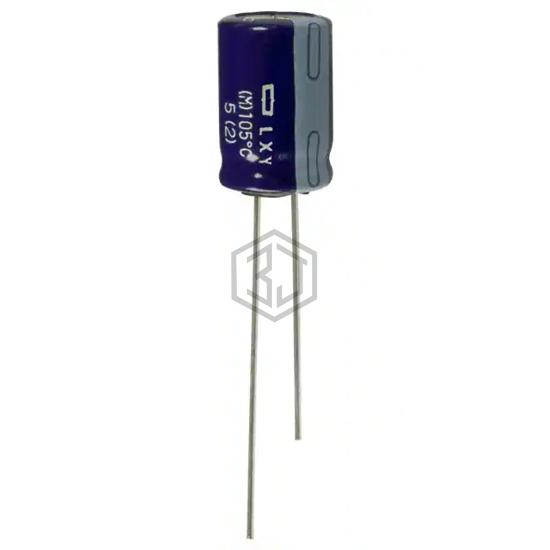

CAP ALUM 330UF 20% 25V RADIAL
LXY25VB331M10X16LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,855
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 412.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 825 mA @ 100 kHz |
| Impedance | 84 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
LXY25VB331M10X16LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1E331MPD1TD | Nichicon | CAP ALUM 330UF 20% 25V RADIAL | 99% | View |
| MAL213660331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V RADIAL | 79% | View |
| UVY1V331MPD | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 75% | View |
| MAL215050331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V RADIAL | 74% | View |
| ECA-1HHG331 | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V RADIAL | 72% | View |
| URZ2A331MHD1CY | Nichicon | CAP ALUM 100V POLAR | 72% | View |
