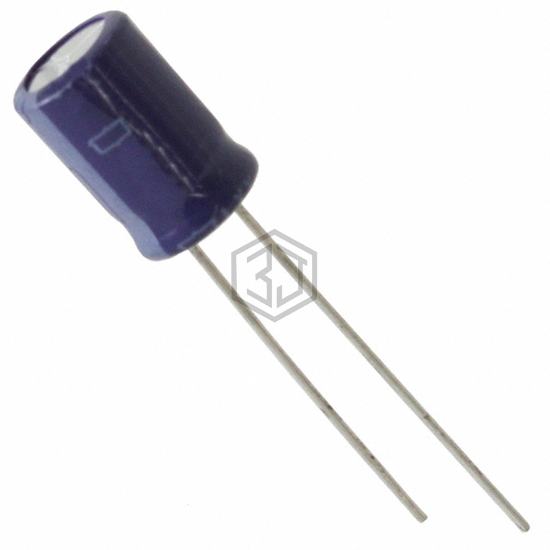

CAP ALUM 150UF 20% 25V RADIAL
LXY25VB151M8X12LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 150UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,946
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 178 mA @ 120 Hz |
| Ripple Current @ High Frequency | 445 mA @ 100 kHz |
| Impedance | 170 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
LXY25VB151M8X12LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858C7157M000 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 35V RADIAL | 82% | View |
| 860080373007 | Würth Elektronik | CAP ALUM 150UF 20% 16V RADIAL | 78% | View |
| 678D157M035CD4D | Vishay Sprague | CAP ALUM 150UF 20% 35V RADIAL | 78% | View |
| ELXZ630ELL151MH20D | United Chemi-Con | CAP ALUM 150UF 20% 63V RADIAL | 61% | View |
| ELXZ630ETC151MH20D | United Chemi-Con | CAP ALUM 150UF 20% 63V RADIAL | 61% | View |
| ELXY630ELL151MJ25S | United Chemi-Con | CAP ALUM 150UF 20% 63V RADIAL | 55% | View |
Submit your RFQ for LXY25VB151M8X12LL and get a quote within 24 hours.
