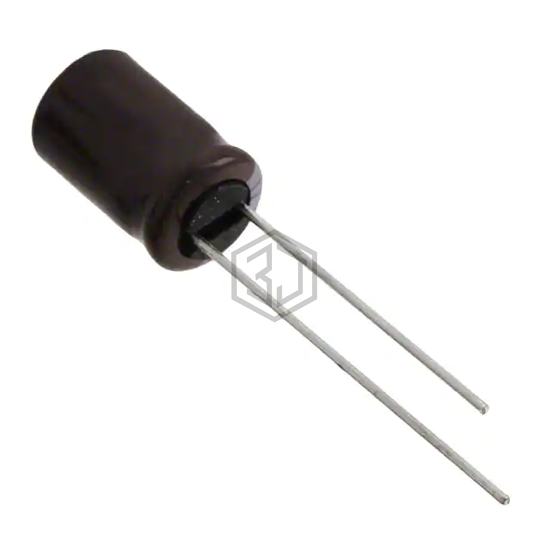

CAP ALUM 82UF 20% 63V RADIAL
KZE63VB82RM8X15LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 82UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 7,120
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 266 mA @ 120 Hz |
| Ripple Current @ High Frequency | 665 mA @ 100 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KZE63VB82RM8X15LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213661829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 50V RADIAL | 86% | View |
| ELXY500ELL820MH15D | United Chemi-Con | CAP ALUM 82UF 20% 50V RADIAL | 77% | View |
| UAQ2D820MHD6TN | Nichicon | CAP ALUM 82UF 20% 200V RADIAL | 68% | View |
| 63YXH82MEFCTA8X16 | Rubycon | CAP ALUM 82UF 20% 63V RADIAL | 63% | View |
| 100ZLJ82MCE10X16 | Rubycon | CAP ALUM 82UF 20% 100V RADIAL | 60% | View |
| 30D826M020CB2A | Vishay Sprague | CAP ALUM 82UF 20% 20V AXIAL | 56% | View |
