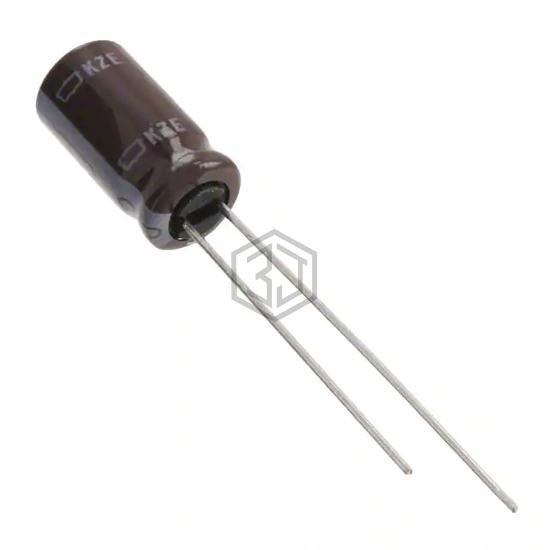

CAP ALUM 33UF 20% 63V RADIAL
KZE63VB33RM6X11LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 33UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 7,439
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 106 mA @ 120 Hz |
| Ripple Current @ High Frequency | 265 mA @ 100 kHz |
| Impedance | 350 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KZE63VB33RM6X11LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50YXF33MEFCT16.3X11 | Rubycon | CAP ALUM 33UF 20% 50V RADIAL | 86% | View |
| 80ZLH33MEFC6.3X11 | Rubycon | CAP ALUM 33UF 20% 80V RADIAL | 83% | View |
| UPJ1H330MED1TA | Nichicon | CAP ALUM 33UF 20% 50V RADIAL | 80% | View |
| UBT2D330MHD1TO | Nichicon | CAP ALUM 33UF 20% 200V RADIAL | 68% | View |
| 63YXH33MEFCT16.3X11 | Rubycon | CAP ALUM 33UF 20% 63V RADIAL | 57% | View |
| 25YXM33MEFRT15X11 | Rubycon | CAP ALUM 33UF 20% 25V RADIAL | 52% | View |
