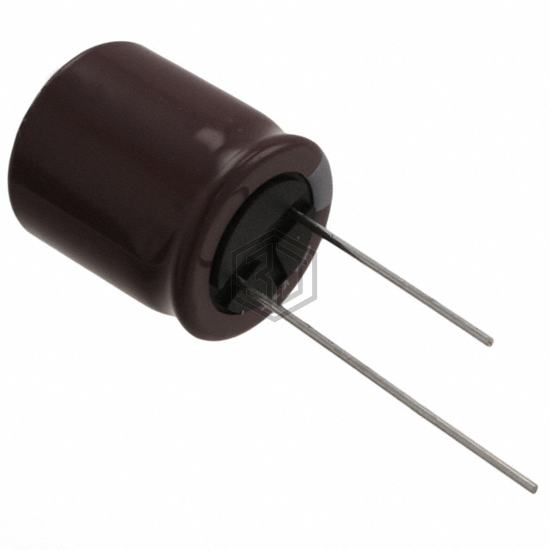

CAP ALUM 1800UF 20% 63V RADIAL
KZE63VB182M18X40LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1800UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 4,268
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.5 A @ 100 kHz |
| Impedance | 17 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KZE63VB182M18X40LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860020680029 | Würth Elektronik | CAP ALUM 1800UF 20% 50V RADIAL | 70% | View |
| LGN2C182MELB40 | Nichicon | CAP ALUM 1800UF 20% 160V SNAP | 69% | View |
| ELXG800VSN182MA25W | United Chemi-Con | CAP ALUM 1800UF 20% 80V SNAP | 67% | View |
| EEU-FC1E182L | Panasonic Electronic Components | CAP ALUM 1800UF 20% 25V RADIAL | 66% | View |
| 180MXC1800MEFC30X50 | Rubycon | CAP ALUM 1800UF 20% 180V SNAP | 64% | View |
| 10ZLK1800M10X25 | Rubycon | CAP ALUM 1800UF 20% 10V RADIAL | 59% | View |
Submit your RFQ for KZE63VB182M18X40LL and get a quote within 24 hours.
