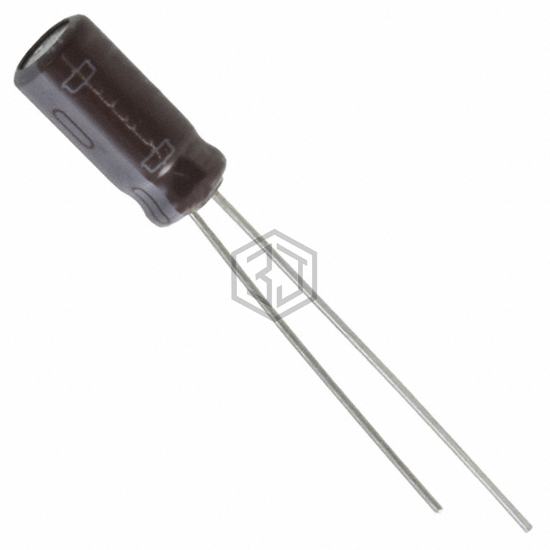

CAP ALUM 33UF 20% 35V RADIAL
KZE35VB33RM5X11LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 33UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 7,190
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 100 mA @ 120 Hz |
| Ripple Current @ High Frequency | 250 mA @ 100 kHz |
| Impedance | 300 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KZE35VB33RM5X11LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860240674004 | Würth Elektronik | CAP ALUM 33UF 20% 50V RADIAL | 84% | View |
| ELE-500ELL330MF11D | United Chemi-Con | CAP ALUM 33UF 20% 50V RADIAL | 82% | View |
| UKL1E330KEDANATD | Nichicon | CAP ALUM 33UF 20% 25V RADIAL | 79% | View |
| ESE336M035AC3AA | KEMET | CAP ALUM RAD 105C | 79% | View |
| UAQ2D330MHD6TO | Nichicon | CAP ALUM 33UF 20% 200V RADIAL | 67% | View |
| 16ZLG33MEFCT55X7 | Rubycon | CAP ALUM 33UF 20% 16V RADIAL | 64% | View |
Submit your RFQ for KZE35VB33RM5X11LL and get a quote within 24 hours.
