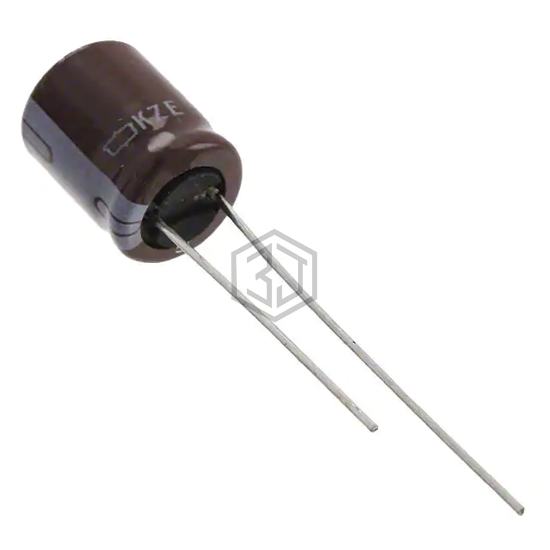

CAP ALUM 330UF 20% 35V RADIAL
KZE35VB331M10X16LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 4,284
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 715 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.43 A @ 100 kHz |
| Impedance | 38 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KZE35VB331M10X16LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50RX30330MG412.5X20 | Rubycon | CAP ALUM 330UF 20% 50V RADIAL | 76% | View |
| 25ZLK330MT78X16 | Rubycon | CAP ALUM 330UF 20% 25V RADIAL | 75% | View |
| 337RZM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 35V RADIAL | 75% | View |
| EEU-TA1J331S | Panasonic Electronic Components | CAP ALUM 330UF 20% 63V RADIAL | 62% | View |
| 381LX331M315J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 315V SNAP | 62% | View |
| LGR2E331MELZ40 | Nichicon | CAP ALUM 330UF 20% 250V SNAP | 61% | View |
Submit your RFQ for KZE35VB331M10X16LL and get a quote within 24 hours.
