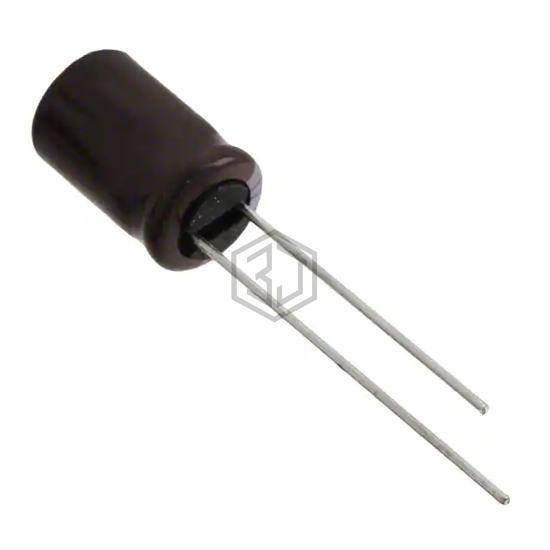

CAP ALUM 150UF 20% 35V RADIAL
KZE35VB151M8X11LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 150UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 4,768
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 304 mA @ 120 Hz |
| Ripple Current @ High Frequency | 760 mA @ 100 kHz |
| Impedance | 72 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KZE35VB151M8X11LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UHE1V151MPD1TA | Nichicon | CAP ALUM 150UF 20% 35V RADIAL | 80% | View |
| EEU-FM1V151BJ | Panasonic Electronic Components | CAP ALUM 150UF 20% 35V RADIAL | 76% | View |
| 860020675018 | Würth Elektronik | CAP ALUM 150UF 20% 50V RADIAL | 65% | View |
| B41858C6157M8 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 50V RADIAL | 62% | View |
| 511D157M063DG5D | Vishay Sprague | CAP ALUM 150UF 20% 63V RADIAL | 62% | View |
| LGJ2Z151MELZ15 | Nichicon | CAP ALUM 150UF 20% 180V SNAP | 59% | View |
Submit your RFQ for KZE35VB151M8X11LL and get a quote within 24 hours.
